EP Series
INDUSTRIAL EPOXY
STANDARD COLORS

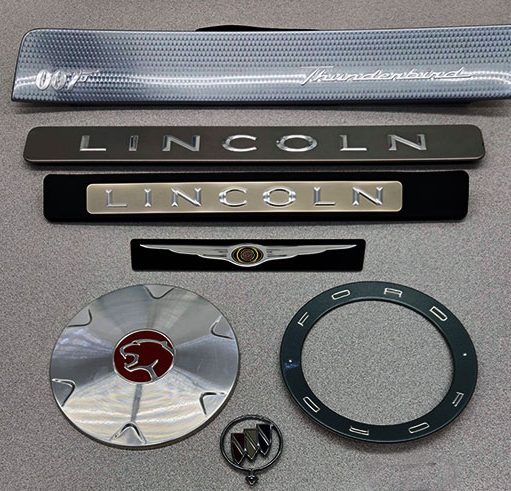

For interior use, EP Series offers excellent adhesion & hardness for metal and glass applications. This high-gloss formulation is also recommended for general OEM use, nameplates, equipment panels and decorative glass. Superior flexibility & chemical resistance. May be reduced for reverse roller coating, coil coating & spraying.
Mixing Clear*
Navy Blue*
Ultra Blue*
Primrose Yellow LF*
Medium Green*
Fire Red LF*
Orange LF*
Maroon*
Flag Red LF*
Deep Red LF*
Perma Green*
Brilliant Perma Blue*
Modified White*
White*
High Cover White* Black*
Medium Yellow LF*
Emerald Green*
Light Blue*
Lemon Yellow LF*
Dark Brown LF*
EP-305
EP-307
EP 308
EP-309LF
EP-312
EP-313LF
EP-314LF
EP-319
EP-322LF
EP.323LF
EP-325
EP-328
EP-349
EP-351
EP-352
EP-353
EP-354LF
EP-390
EP-391
EP-392LF
EP-395LF
SUBSTRATES
Glass | metals | anodized, mill-finished and coated aluminum
Compliant with Title 2l CFR I 75.300
(incidental food contact.)
Special primers and top coats are available for increased flexibility and chemical resistance (see descriptions below).
SPECIAL PRIMERS & TOPCOATS
EP-301 Topcoat: For use over colors. Enhances chemical and abrasion resistance; approved for use in appliances.
EP-304 Topcoat: For Non-Yellowing over white.
EP-306 Additive: For formed parts, improves flexibility of subsequent colors.
Simulated Etch for Glass*: EP-34155
Matte Clear for Metal*: EP-34155
MODIFIERS
Reducer: EP-360 Reducer
Retarder: Use 5-10% EP-321 Retarder to slow drying in screen
Flow Additive: Use 1-2% EP-320 to promote leveling
Catalyst: EP-350
SCREEN WASH
Use EP-310
BAKE/CURE
Bake Dry:
300°F for 15 minutes
350°F for 8 minutes
400°F for 4 minutes
Flash-off 30 seconds at 500°F.
Equipment: Batch oven with convection air or industrial conveyor dryer (non-textile) are preferred. lR panels may provide sufficient cure if belt matches parameters above.
SCREEN MESH
260 to 355
Polyester Monofilament
STENCILS
Direct method
emulsions,
capillary films
SQUEEGEE
All types, 60 to 80 durometer
Note: lnformation contained in Cudner & O’Connor product sheets is based on laboratory and field tests. Because we cannot control actual production conditions, no warranty is expressed or implied. Careful testing is always recommended prior to production. Consult with our Technical Services Department on all application issues.
COVERAGE
Approximately 1200 - 1500 Sq, Ft / Gal.
Transparent Blue*
Transparent Yellow*
Transparent Orange*
Transparent Red Y*
Transparent Violet*
Transparent Red B*
Transparent Green*
TRANSPARENT COLORS
EP-330
EP-331
EP 332
EP-333
EP-334
EP-338
EP-340
METALLICS
Rich Gold*
Rich Pale Gold*
Pale Gold*
Silver*
EP-335
EP-336
EP 337
EP-339
*Heavy metal compliant
