CC Series
Crystalline Effects
CRYSTAL COAT

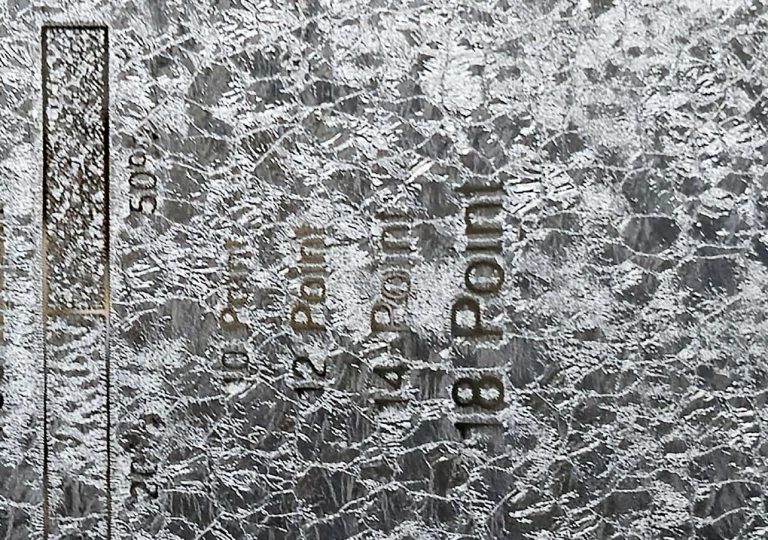

CC Series Inks are recommended for furniture, partitions, architectural elements and other decorative components. When heat set, this unique two part system creates a striking crystalline effect on the printed areas. Crystal Coat exhibits excellent indoor durability, resists abrasion, and superior chemical resistance.
Clear Part 1
Clear Part 2
CC-004
CC-006
SUBSTRATES
Glass | Metal
MIXING
For normal use, mix component 1 and component 2 in equal parts. Changing crystal size: crystal size may be increased or reduced by adjusting ratios. Increasing the amount of component 1 increases crystal size. Ratio of component 1 to component 2 may be as high as
4 to 1. (Also see screen mesh comments below).
POT LIFE
Approximately 8 hours after mixing.
**SCREEN MESH ADJUSTMENTS
Coarser mesh counts will producer, larger, brighter crystals. Finer mesh counts produce smaller, less reflective crystals.
MODIFIERS
Reducer: CC-001
Retarder: CC-005
Flow Promoter: CC-020
SCREEN WASH
Use CC-010
BAKE/CURE
Bake Dry: 350°F for 2 - 4 minutes
Equipment: for proper application, an industrial conveyorized dryer with air movement (3,000 to 5,000 cfm) is required to achieve an even crystal pattern.
SCREEN MESH
160 to 305+
Polyester Monofilament
STENCILS
Direct method
emulsions, capillary films
SQUEEGEE
All types, 60 to 80 durometer
Note: lnformation contained in Cudner & O’Connor product sheets is based on laboratory and field tests. Because we cannot control actual production conditions, no warranty is expressed or implied. Careful testing is always recommended prior to production. Consult with our Technical Services Department on all application issues.
COVERAGE
Approximately 1200 - 1500 Sq, Ft / Gal.
Yellow
Gold
Orange
Pink
Red
Blue
Green
Brown
Black
CC SERIES SOLVENT DYES
CC-100
CC-101
CC-102
CC-103
CC-104
CC-105
CC-106
CC-107
CC-108
